What’s the right way to define labware that is mounted directly on one of the base plates? Is it possible to make a rack available to the 3D labware assistant?
we have multiple multiflex carriers, and are looking to do just this! We have a few of the standard plate carriers, but they are a little bit too tall to hold our magnet. Any chance someone has a .stl file for a plate holder that will screw into the multiflex carrier? Any help would be greatly appreciated!
Hi guys,
its been a while I was starting to design a Hamilton Carrier and i would like to share this with you…

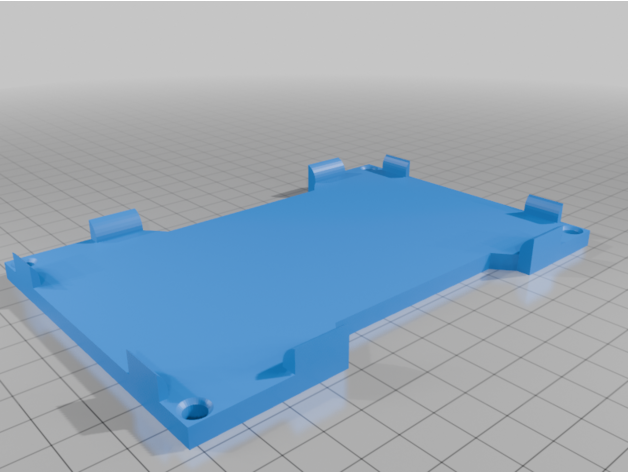

The sides have holes which fits onto the screws of the Hamilton Carriers
Its not perfect but i think its a start , feel free to edit it !
The idea was to use screws to assemble it…
I used Fusion360 to create it.
6 Likes
printing carriers is fun
8 Likes
Does anyone know if someone has a permanent MFX carrier they’ve been able to design (the ones that slot into the deck track almonds)?
1 Like
Like this? It doesn’t have the holes but this is the base model for anything I make that goes on the deck.
2 Likes

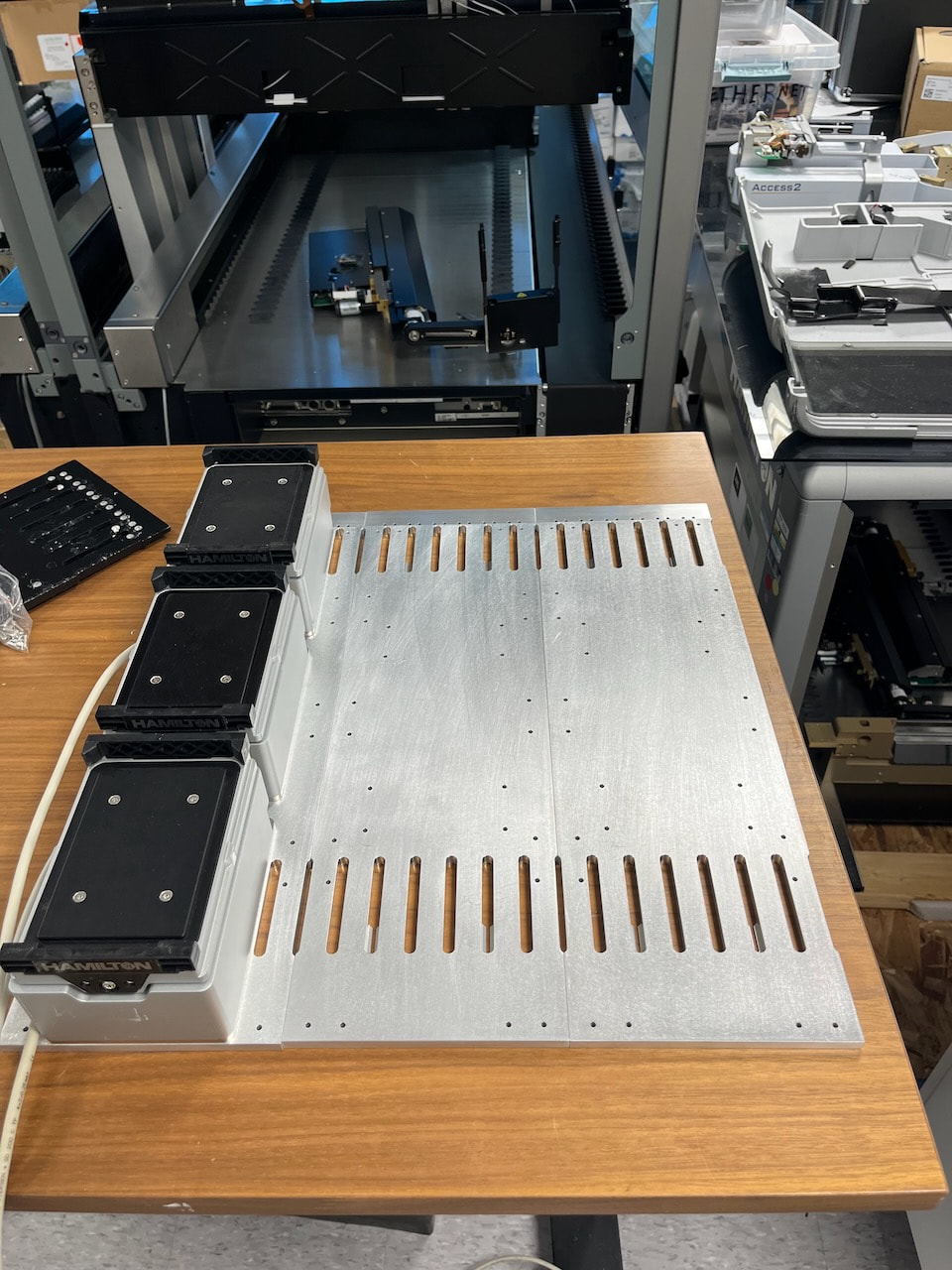

It costs <$100 per MFX carrier if you get them CNC machined by SendCutSend or JLCCNC:
I make a design with all the screw hole arrangements I’ll possibly need and batch-manufacture them to get the costs down lower. They are very high quality. I’d prefer to use laser-cut sheet metal instead, but I haven’t gotten good design for manufacturing down.
You can also 3d-print working carriers from this model with a large enough printer, or split the print into 2 parts using a dovetail joint. Most 3d printer slicers like OrcaSlicer will generate that dovetail where you need it at a click of a button.
9 Likes
Thanks for sharing the design, Ben. How do you get the milled carriers to slide on the deck tracks with the slide blocks?
1 Like
these attach to the submarines in the same style as hamilton heater shaker carriers: a 1.5mm tall slot that fits around the base of the submarine. it does not interface with the sliding endstop carrier sensor or autoload drive gear
