OT Flex: Gripper Force

hkjawn · September 24, 2025, 5:33pm

Hello everyone!
Does anyone know how to adjust the gripper force on the Opentrons Flex?

in the API docs I see that there’s close_gripper_jaw(self, force: Optional[float] = None)

Does this mean I would have to control the gripper step by step instead of using move_labware()?

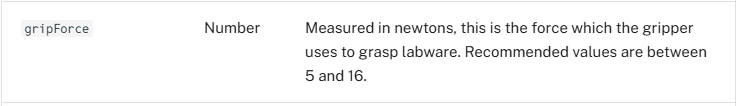

Another thing I tried was adding the gripForce parameter to my labware’s definition, based on this page

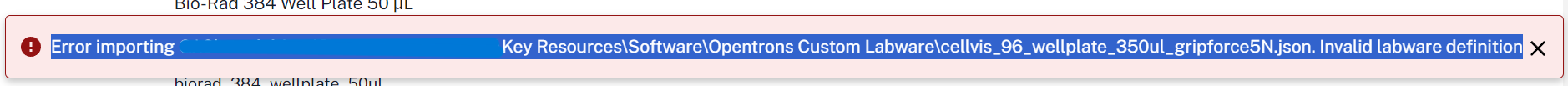

However, when I make that change the Opentrons app says that my labware definition is invalid. (I checked my JSON using JSONLint and it said that the file itself was valid!)

I do notice though, that the labware definitions on github don’t have gripForce in their JSON files despite it being mentioned as a parameter on the website.

PS. I also tried adding gripForce as an argument in move_labware but it didn’t work haha.

MeghanFerzoco · September 24, 2025, 6:43pm

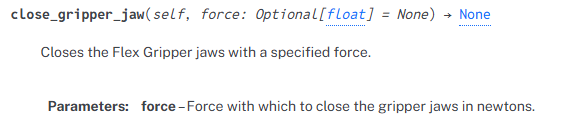

Hey, RobotContext.close_gripper_jaw gives this control

Here’s the documentation. Let me know if this helps or if you need more clarity here!

Shinedalgarno · September 29, 2025, 11:16am

Hello there @hkjawn

I think you’re correct in your assumption that you would need to control the gripper step by step here instead of using move_labware (which personally I think is kind of silly, it should be included in the move_labware function)

I can get

protocol.robot.close_gripper_jaw()

to at least simulate, but when trying to use build_axis_map (which seems necessary to move your gripper around like this) I cannot seem to figure out what goes into the “location” parameter.
eg.

protocol.robot.axis_coordinates_for(“gripper”,plate)

One would assume it would be a labware object or a deck location, but it appears to be neither

I may be missing something obvious though, maybe opentrons could respond @MeghanFerzoco? It would be nice to have a code example of this functionality

MeghanFerzoco · September 29, 2025, 12:34pm

Happy to help. Here’s a code example using custom labware:
{
